Machines
Page 1, 2, 3
 |
WAXER - FOR VEGETABLE An efficient HOT Wax applicator for Tomatoes, Cucumbers, Peppers. Has 9 lower bed brushes and 1 overhead applicator brush. Uses any standard hot type vegetable wax. Comes complete with motor ready to use. OVER-ALL Length is 3'.
|
|||
| SPECIFICATIONS | Series 1650 | Series 2450 | ||
| Inside Width | 16 1/2" | 24 1/2" | ||
| Outside Width, Frame | 27" | 35" | ||
| Overall length | 37" | 37" | ||
| Height w/legs at min, setting | 58" | 58" | ||
| Intake ht. minimum | 31" | 31" | ||
| Discharge ht. minimum | 30" | 30" | ||
| Standard adj. up | 8" | 8" | ||
| Shipping wt. crated, approx. | 300# | 350# | ||
 |

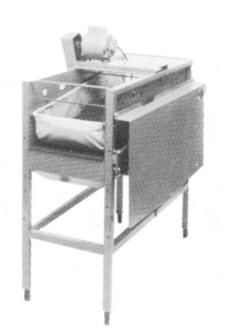

DRY BRUSHER A 12 brush unit with cloth and rubber suspended over the lower brushes. Uses same frame as washer so it can be converted to washer at any time.
|
|||
| SPECIFICATIONS | Series 1650 | Series 2420 | ||
| Inside Width | 16 1/2" | 24 1/2" | ||
| Outside Width, Frame | 26 1/2" | 34 1/2" | ||
| Overall length | 45 1/2" | 45 /2" | ||
| Height inc. motor w/legs at min. setting | 52" | 52" | ||
| Without motor | 43 1/4" | 43 1/4" | ||
| Intake ht. min | 29 1/4" | 29 1/4" | ||
| Discharge ht. min | 32 1/4" | 32 1/4" | ||
| Standard adj. up | 8" | 8" | ||
| Shipping wt. crated, approx | 300# | 350# | ||
 |
5' LONG ROLLER INSPECTION CONVEYOR WITH GEARMOTOR
DRIVE The Roller Conveyor provides an excellent space for inspecting and sorting produce. Each piece of fruit or vegetable turns as it moves along so workers can see every side of it. Comes complete with gearmotor. Two people can work each side if necessary, but normally only one is needed. The Elevating style, as shown, raises produce approximately 9'. This means the Receiving Conveyor of machine can be at a low level while packing end can be conveniently higher. See Machine MR on page 11. A Level Roller can be used for a Receiving Unit of a
machine as well as for sorting. Model CW on page 9 illustrates an
excellent assembly for feeding a cider-making operation. |
|||
 |
MODEL H - INCLUDES 4' RECEIVER BELT, WASHER, ABSORBER,
ROTARY TABLE This assembly permits receiving produce from field crates or baskets, washing it for optimum appearance and then packing it from the rotary table. Two to four people can operate the the assembly with maximum efficiency packing up to 100 bushels per hour with the 16 1/2" and to 150 bushels per hour with the 24 1/2". One 1/2 hp motor and one 1/4 hp gearmotor run the machine |
|||
